Straight Tuck (Panel 1) Template & Dieline Generator
Straight Tuck Panel 1 is a carton template with both main end flaps attached to the first broad panel.

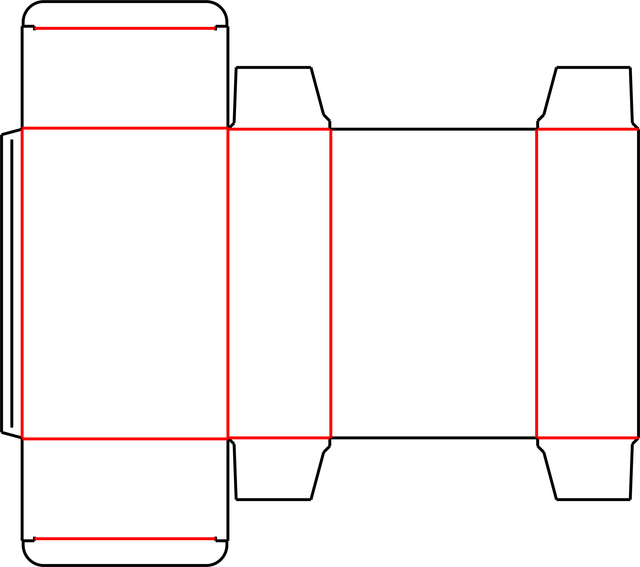

The flat pattern shows top and bottom tuck flaps on the left-hand main panel, with dust flaps alongside them. Choose this panel arrangement when planning consistent opening directions at both ends. Compare it with the Panel 3 version before placing artwork, barcodes, or a side-seam graphic.
Sign in to edit dimensions. PDF and DXF downloads use export credits.
| Categories | Tuck End Box, Medicine Box |
|---|---|
| Customizable | Dimensions and available construction controls |
| Export | PDF and DXF with export credits |
How to use this template
1Open template
Open the Straight Tuck (Panel 1) template in Carton Maker.
2Adjust dimensions
Sign in and adjust the dimensions and available construction controls.
3Review and export
Check the dieline, preview the fold, and export as PDF or DXF.
Make and check a physical sample with your intended material before production.
