Standard Reverse Tuck Template & Dieline Generator

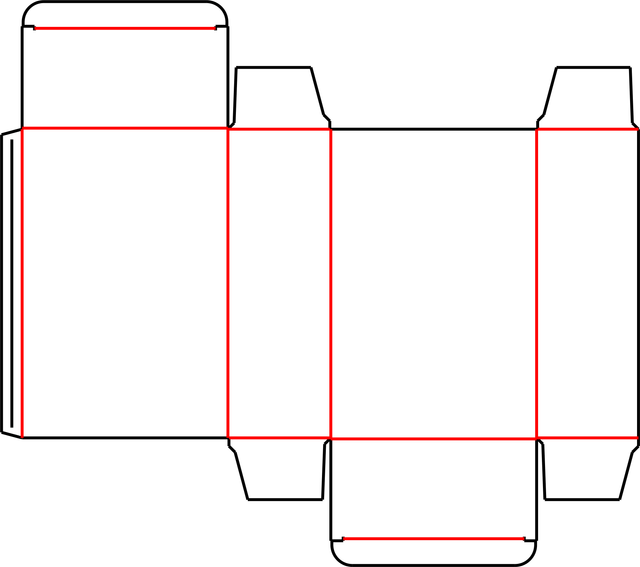

Standard Reverse Tuck is a four-panel folding-carton template with top and bottom tuck flaps on opposite main panels.
The left-hand main panel carries the large top flap, while the other broad panel carries the large bottom flap. This makes the opening directions different at the two ends. Use it for small retail products after checking dust-flap overlap, product clearance, and the intended folding sequence.
Sign in to edit dimensions. PDF and DXF downloads use export credits.
| Categories | Tuck End Box, Medicine Box |
|---|---|
| Customizable | Dimensions and available construction controls |
| Export | PDF and DXF with export credits |
How to use this template
1Open template
Open the Standard Reverse Tuck template in Carton Maker.
2Adjust dimensions
Sign in and adjust the dimensions and available construction controls.
3Review and export
Check the dieline, preview the fold, and export as PDF or DXF.
Make and check a physical sample with your intended material before production.
What you can do
3D folding preview
Inspect the folded model where available.
PDF / DXF export
Download production-ready dieline files with credits.
Multi-ups & nesting
Arrange multiple copies on a sheet.
Notching & locking
Adjust available notching and locking details.
Measure & check
Review dimensions and sheet settings.
Related templates
View all templates
FAQ
Can I change the dimensions of this template?
Yes. Open the editor and sign in to adjust the dimensions and available construction controls.
Can I export the dieline as PDF or DXF?
Yes. PDF and DXF exports require a signed-in account with valid export access and available credits.
Should I make a sample before production?
Yes. Check scale, material thickness, fit, and assembly with a physical sample and your printer or die maker.
A structural template does not certify a material or finished package for a particular product. See current pricing for export options.
