Diary Template & Dieline Generator

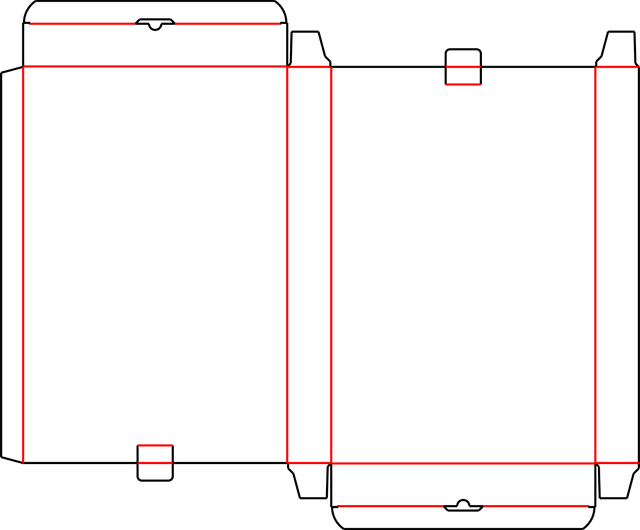

Diary is a folding cover template with top and bottom return flaps and small projecting locking tabs.
The flat layout has two broad cover areas, a narrow connecting region, and side joining strips. Use it to plan a diary or document cover after checking the book thickness and the tab positions. It is a cover construction; it does not generate the bound pages or a separate protective insert.
Sign in to edit dimensions. PDF and DXF downloads use export credits.
| Categories | Diary Cover |
|---|---|
| Customizable | Dimensions and available construction controls |
| Export | PDF and DXF with export credits |
How to use this template
1Open template
Open the Diary template in Carton Maker.
2Adjust dimensions
Sign in and adjust the dimensions and available construction controls.
3Review and export
Check the dieline, preview the fold, and export as PDF or DXF.
Make and check a physical sample with your intended material before production.
What you can do
3D folding preview
Inspect the folded model where available.
PDF / DXF export
Download production-ready dieline files with credits.
Multi-ups & nesting
Arrange multiple copies on a sheet.
Notching & locking
Adjust available notching and locking details.
Measure & check
Review dimensions and sheet settings.
Related templates
View all templates
FAQ
Can I change the dimensions of this template?
Yes. Open the editor and sign in to adjust the dimensions and available construction controls.
Can I export the dieline as PDF or DXF?
Yes. PDF and DXF exports require a signed-in account with valid export access and available credits.
Should I make a sample before production?
Yes. Check scale, material thickness, fit, and assembly with a physical sample and your printer or die maker.
A structural template does not certify a material or finished package for a particular product. See current pricing for export options.
